IP2366 PD3.1 140W Bidirectional Fast Charging: 2S 3S 4S 5S 6S Charger

Lithium Battery Li-ion Lifepo4 BMS Charger Discharger: TYPE-C USB XT30 XT60

Model Number: 2S 3S 4S 5S 6S Charger

Origin: Mainland China

Output Voltage: TYPE-C USB XT30 XT60

Semi-finishedproduct: Yes

Size: Power Bank Control Board

Style: Lithium Battery Li-ion Lifepo4 BMS Charger Discharger

Type: IP2366 PD3.1 140W Bidirectional Fast Charging

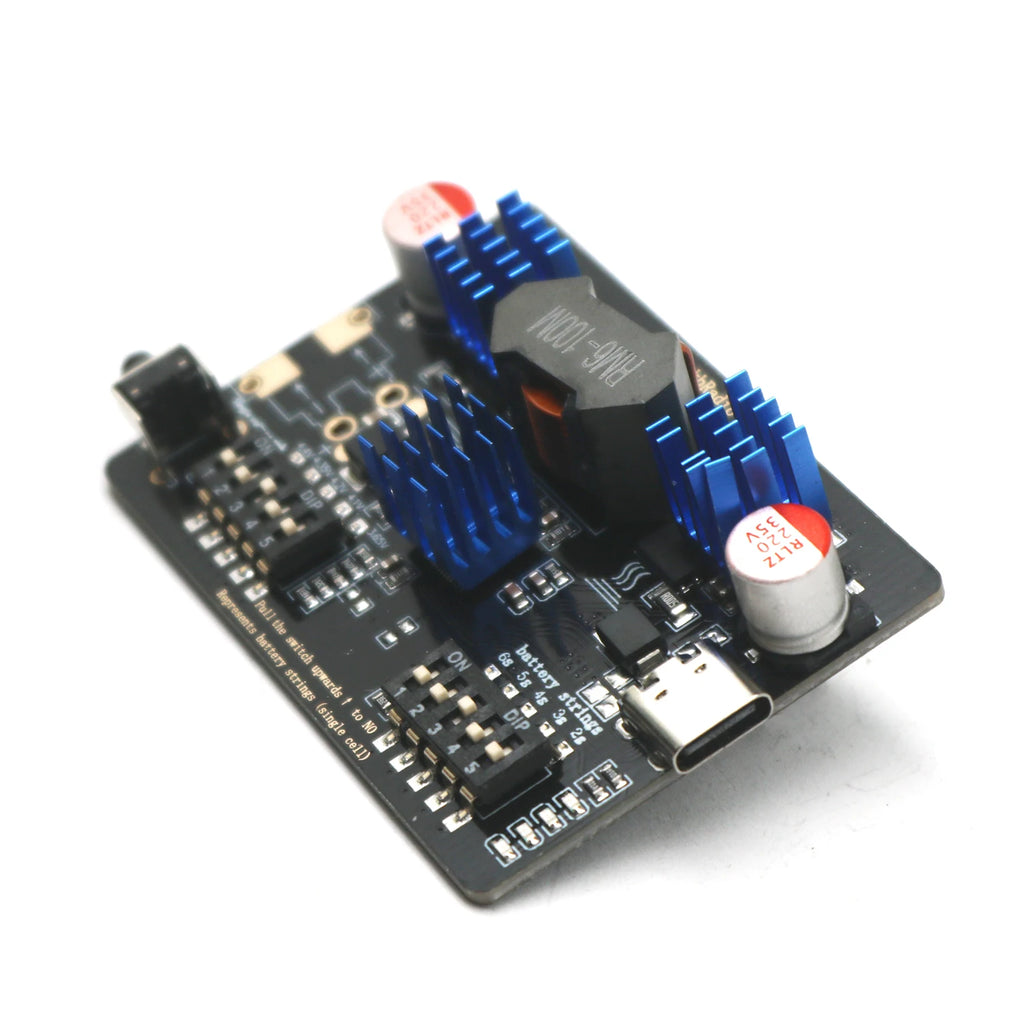

IP2366 PD3.1 140W Power Bank Control Board with Smart Charging Protocol

Key Innovation
🔥 Industry-Leading 140W Bidirectional Charging
🔥 Multi-Chemistry Support: Li-ion(NMC)/LiFePO4
🔥 PD3.1 + PPS + QC4+ Protocol Stack

Technical Specifications

Parameter	Specification

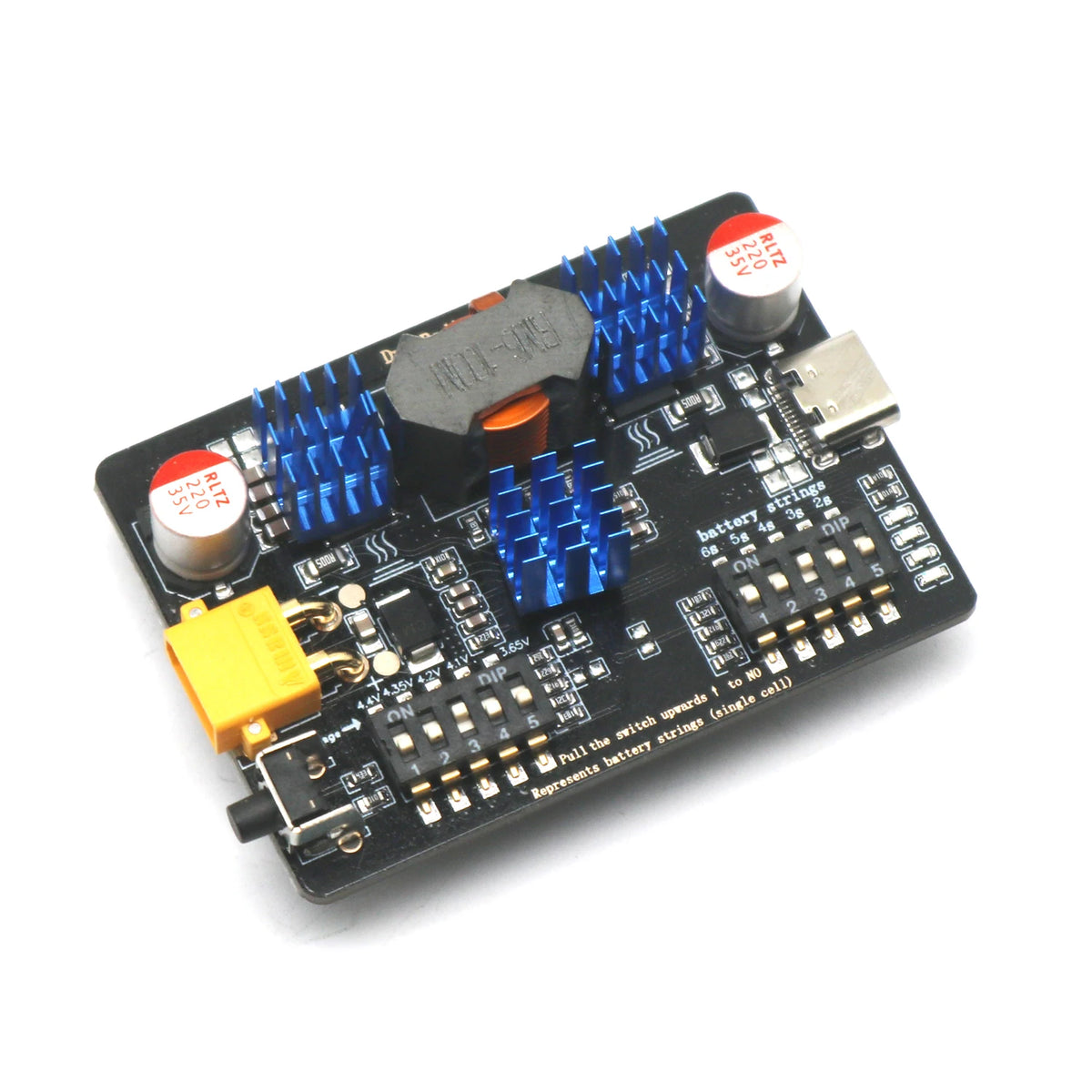

Cell Configuration	2-6S Li-ion Adjustable via DIP Switch

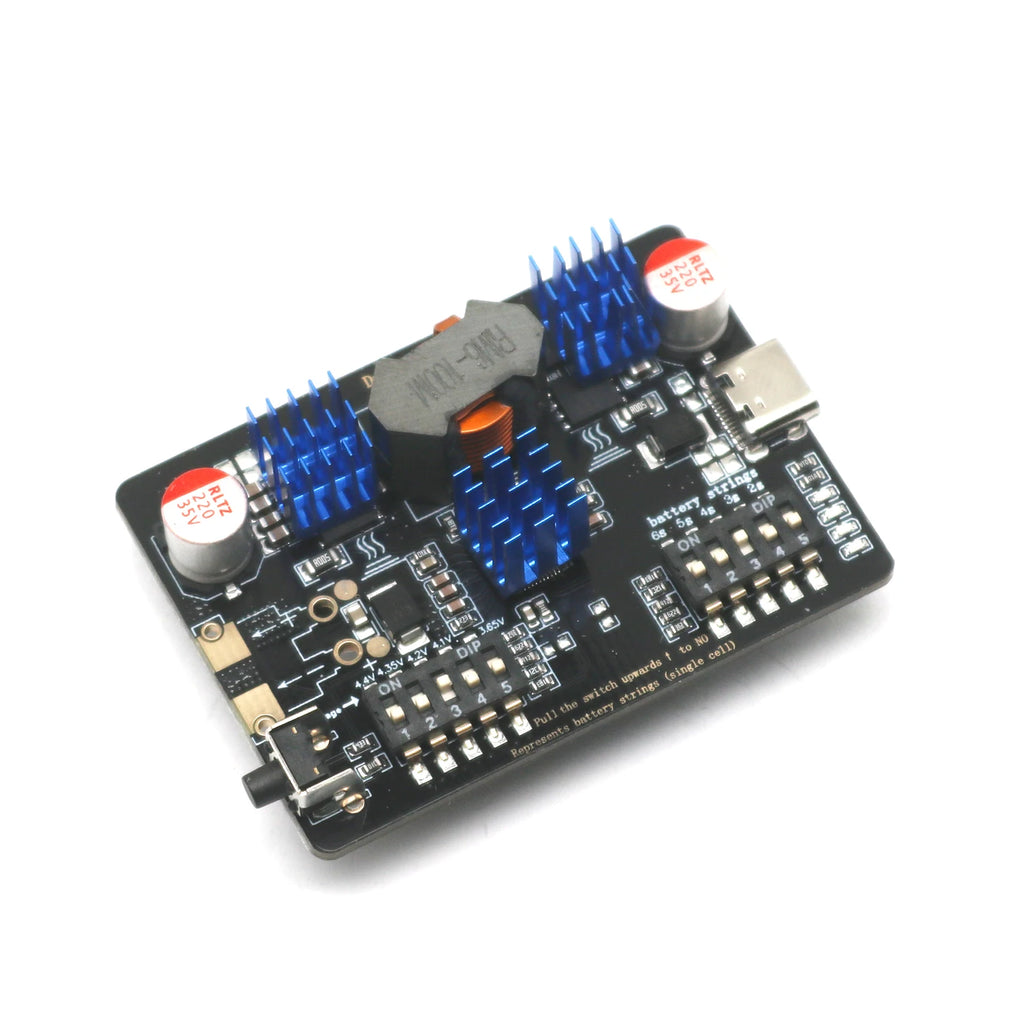

Charge Voltage Options	3.65V/4.1V/4.2V/4.35V/4.4V Adjust the toggle switch

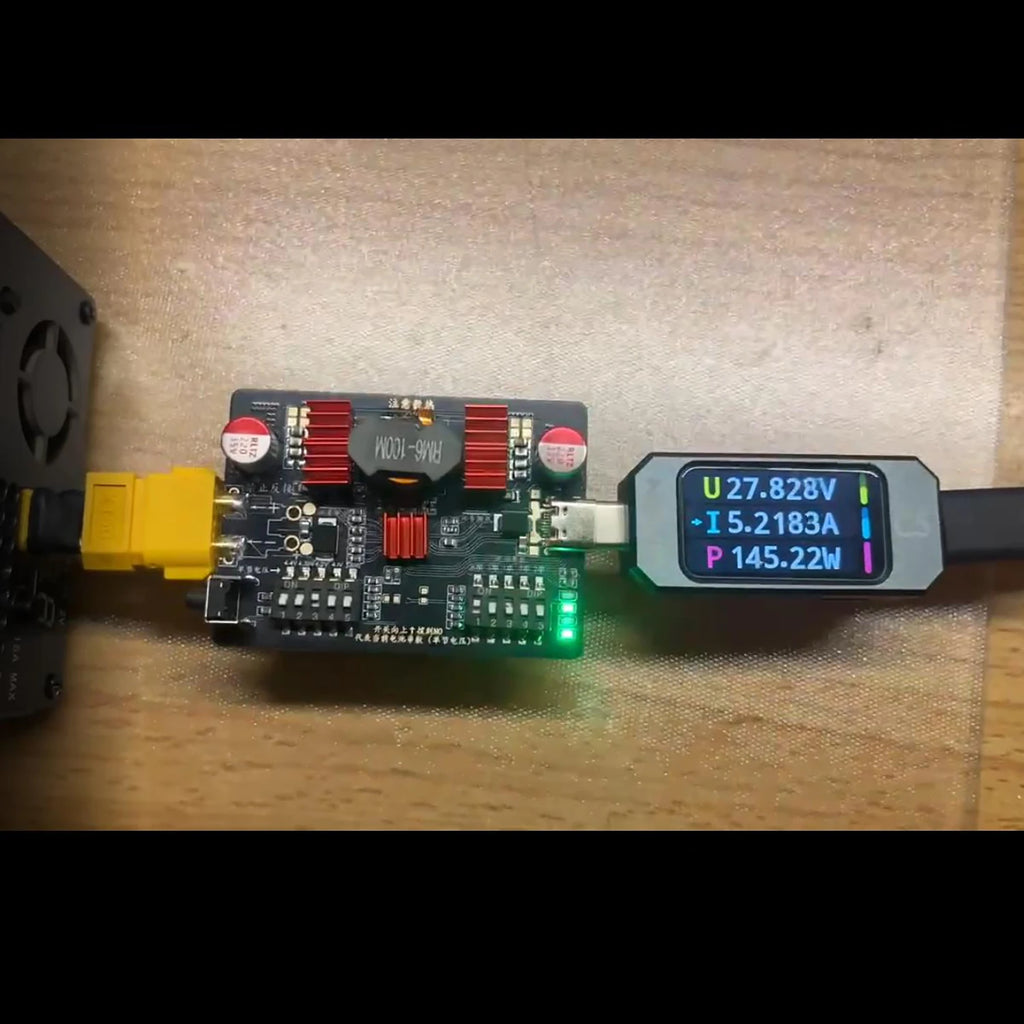

Max Continuous Power	140W (28V@5A) via PD3.1 E-mark Cable

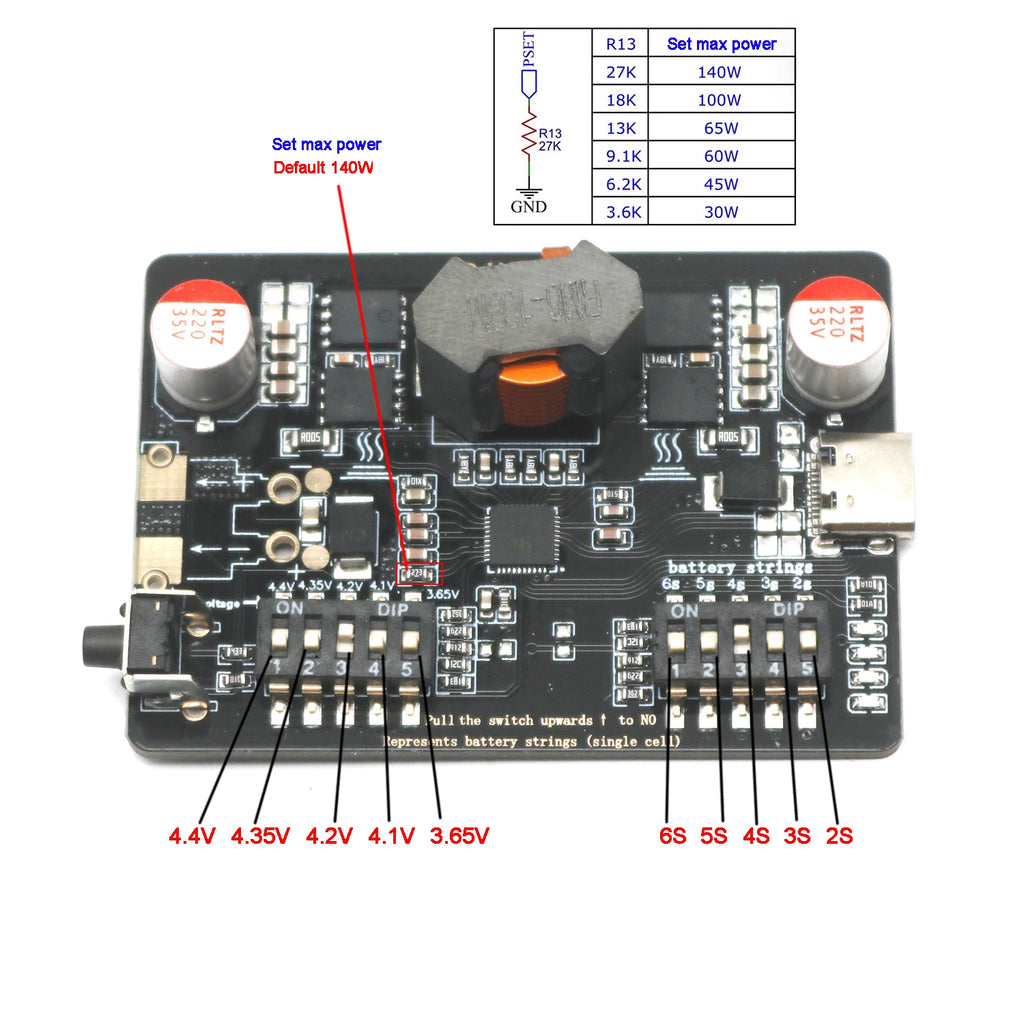

Power support 140W (default)	100W 65W 60W 45W 30W, resistance needs to be modified
Protocol Support	PD3.1/PPS/QC4+/FCP/AFC/SCP/DRP Try.SRC

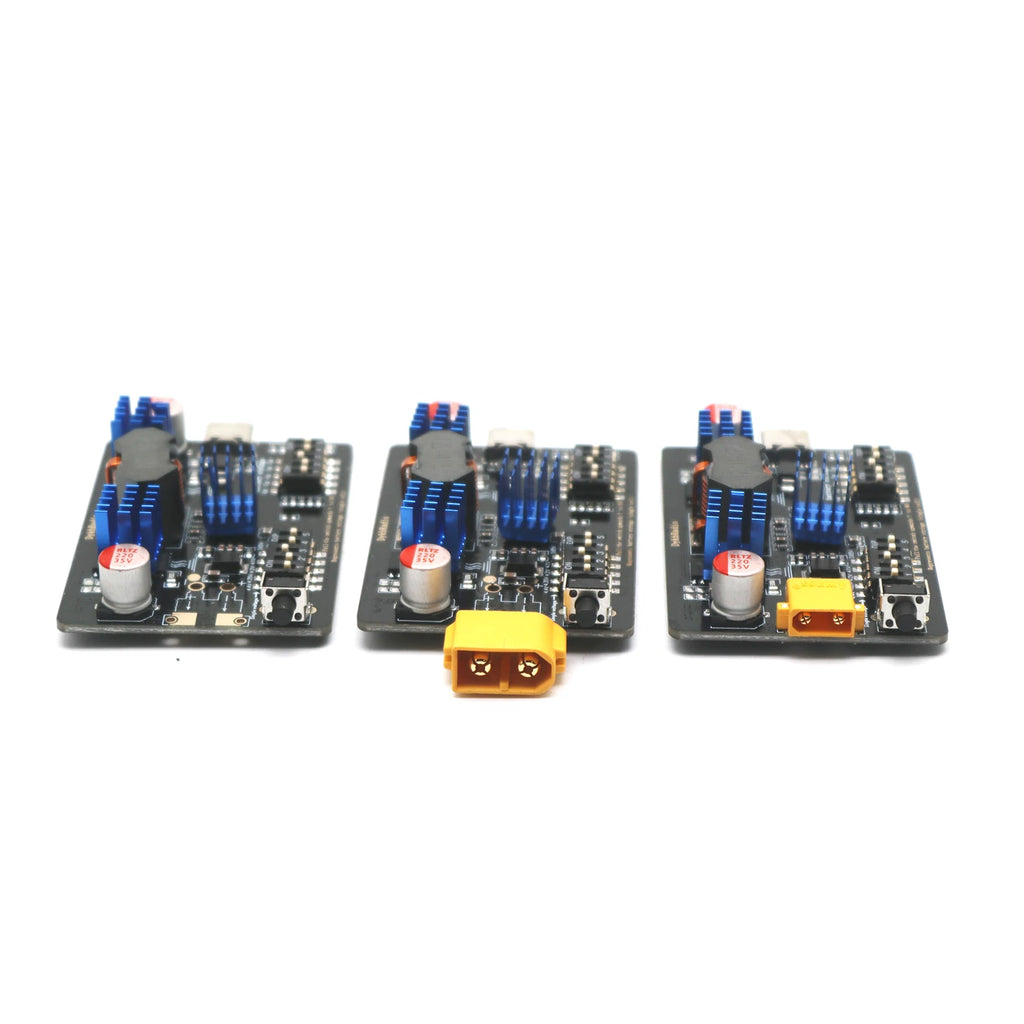

Interface	XT60 (Supports XT30 via PCB pads)

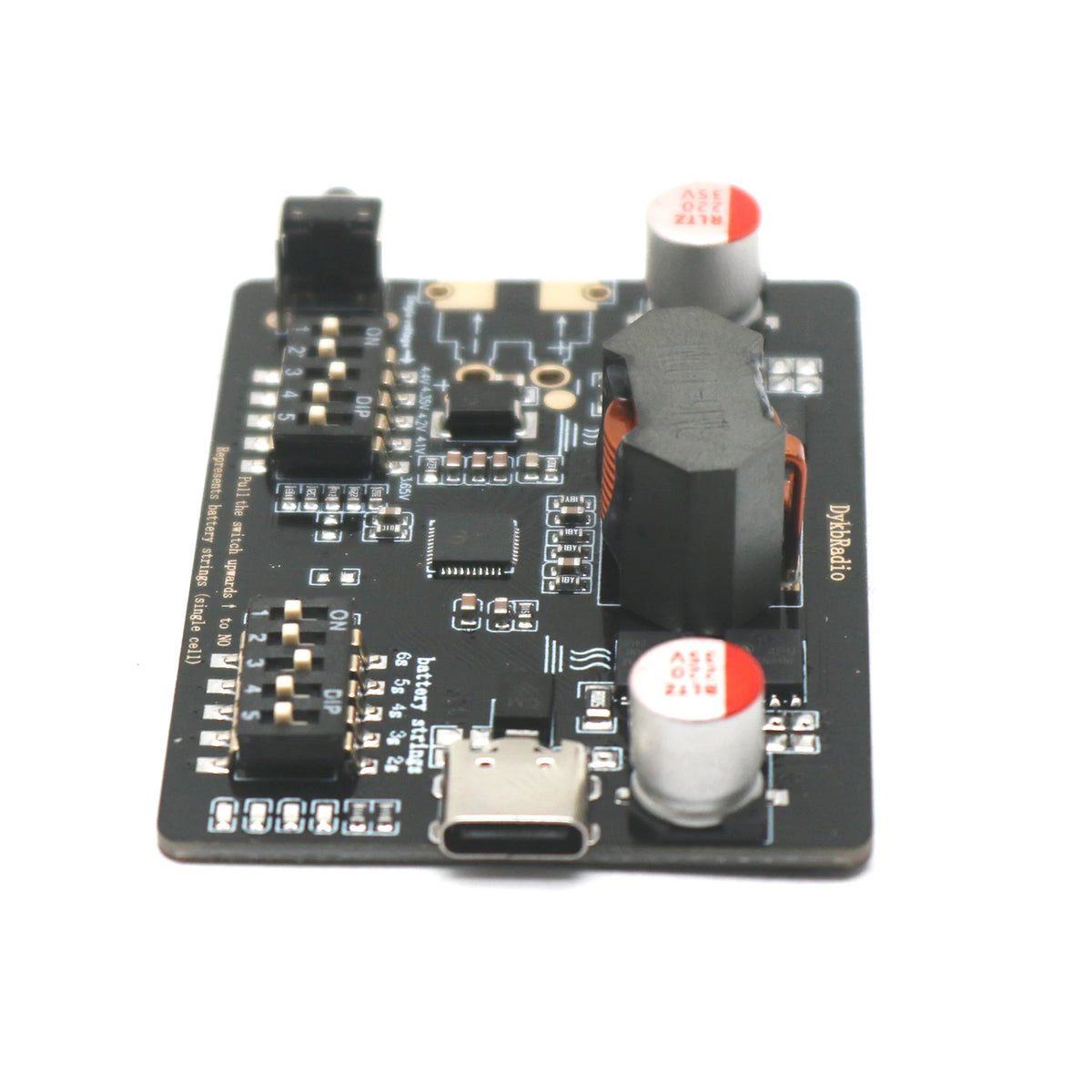

Inductor Technology	Flat Copper Wire (35A Current Rating)

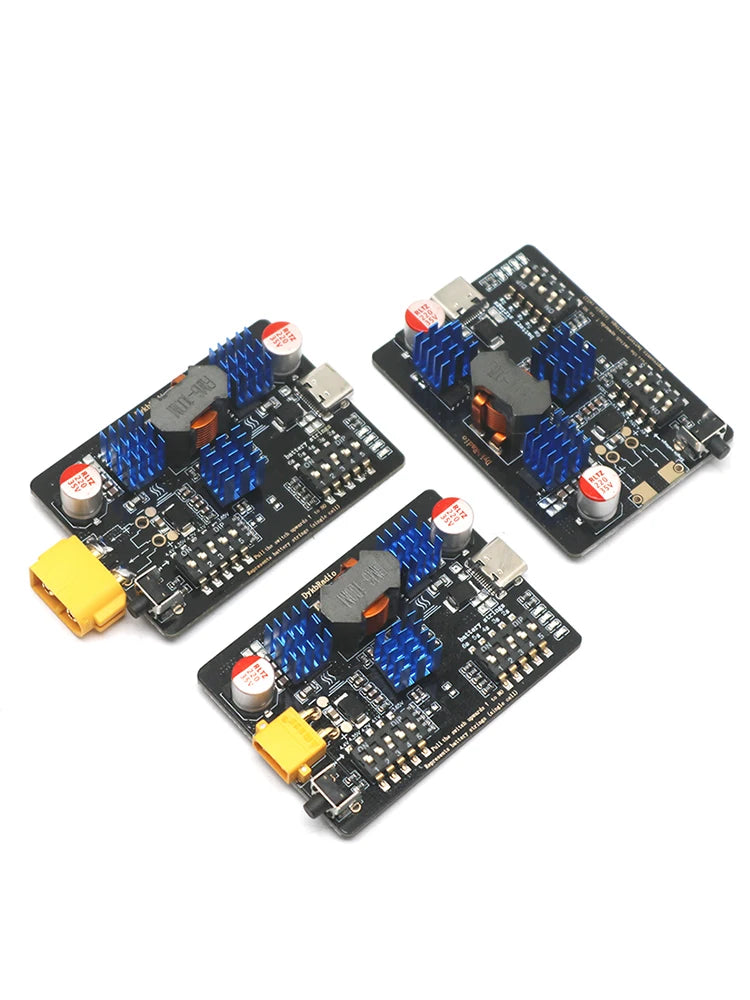

Dimension	86×56mm (Optimized Thermal Design)

Power Matrix by Cell Count

Battery Cells	Max Recommended Power
2S-3S	65W (20V@3.25A)
4S	100W (20V@5A)
5S-6S	140W (28V@5A)

Intelligent Charging Management

✔ Auto-Chemistry Detection - Smartly identifies Li-ion/LiFePO4 batteries
✔ Dynamic Thermal Control - Auto-throttles power when >75°C
✔ Reverse Polarity Protection - Spark-proof circuit design

Protocol Compatibility Matrix

✅ PD3.1 28V EPR ✅ QC3.0 20V Class
✅ PPS 3.3-21V 3A ✅ SCP 5A SuperCharge
✅ AFC 9V/12V ✅ FCP 24W Fast Charge

Application Scenarios

◼ High-Speed Drone Battery Chargers
◼ Professional Camera Power Stations
◼ Portable 4K Gaming Rig Power Solutions
◼ Industrial Equipment Field Maintenance

Safety Features

⚠️ Over-Temperature Protection (OTP)
⚠️ Short-Circuit Protection (SCP)
⚠️ Over-Voltage Protection (OVP)
⚠️ Under-Voltage Lockout (UVLO)

Installation Notes

① Must use PD3.1-certified cables for 140W operation
② Maintain ≥5mm airflow space for thermal management
③ Secure battery connections before power-on
